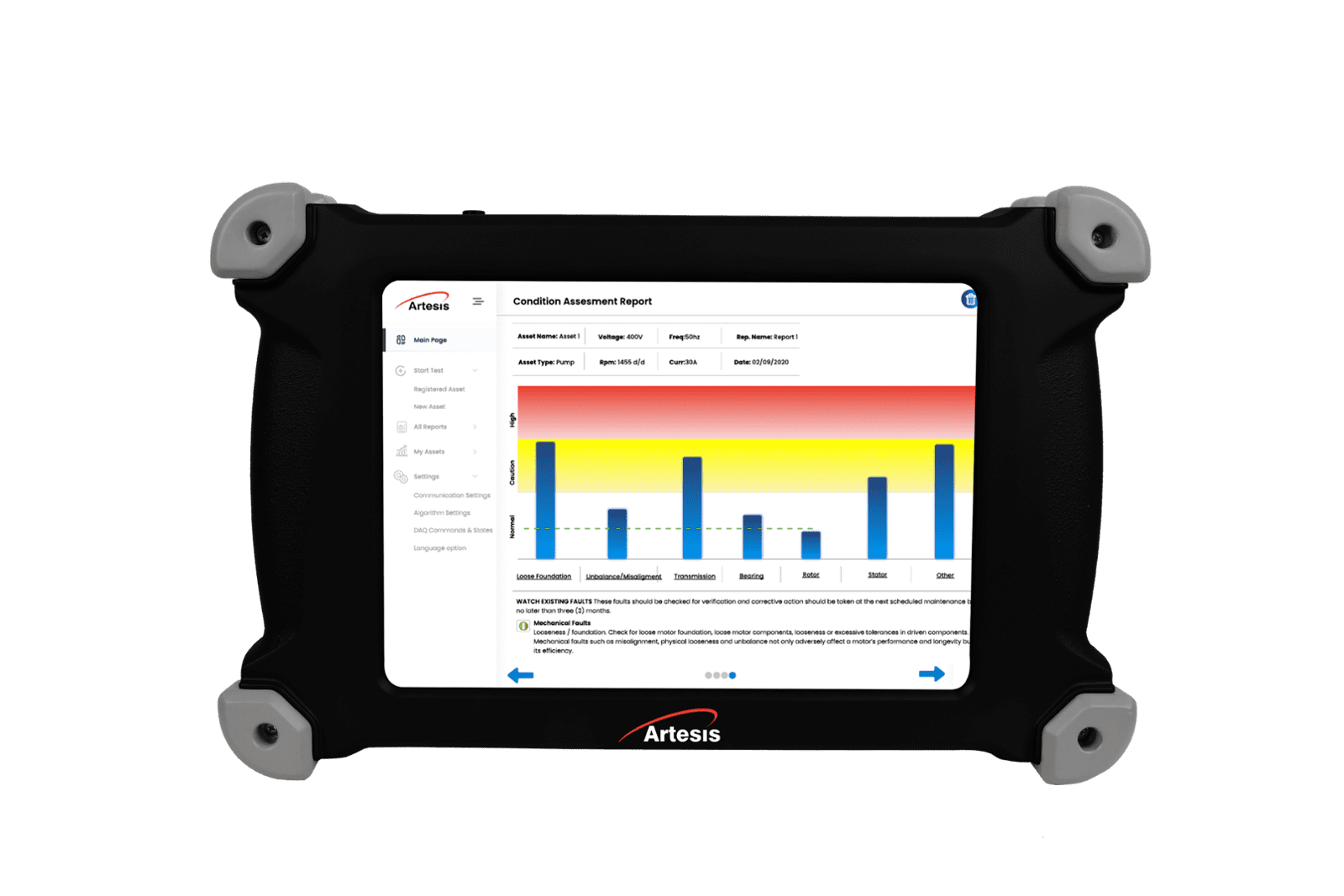

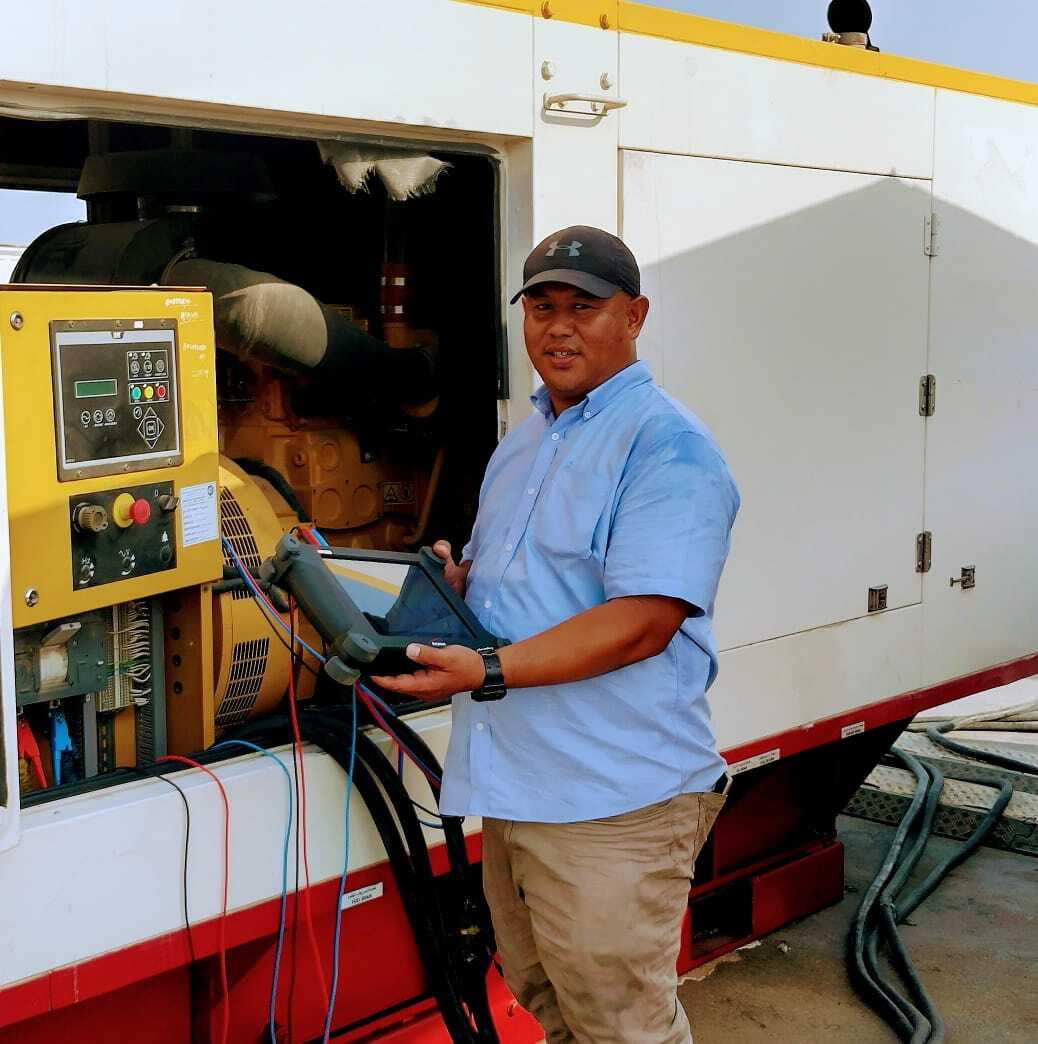

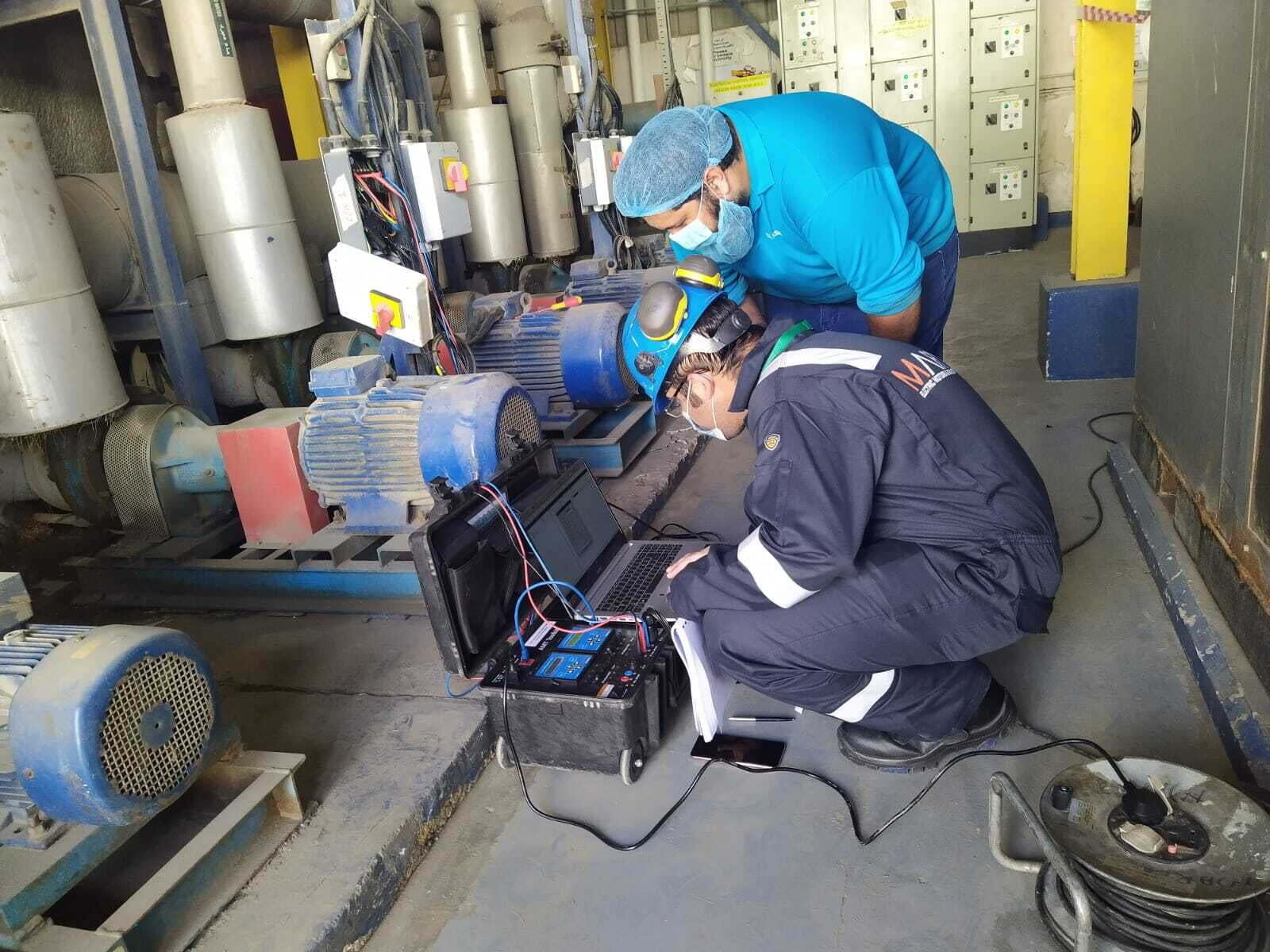

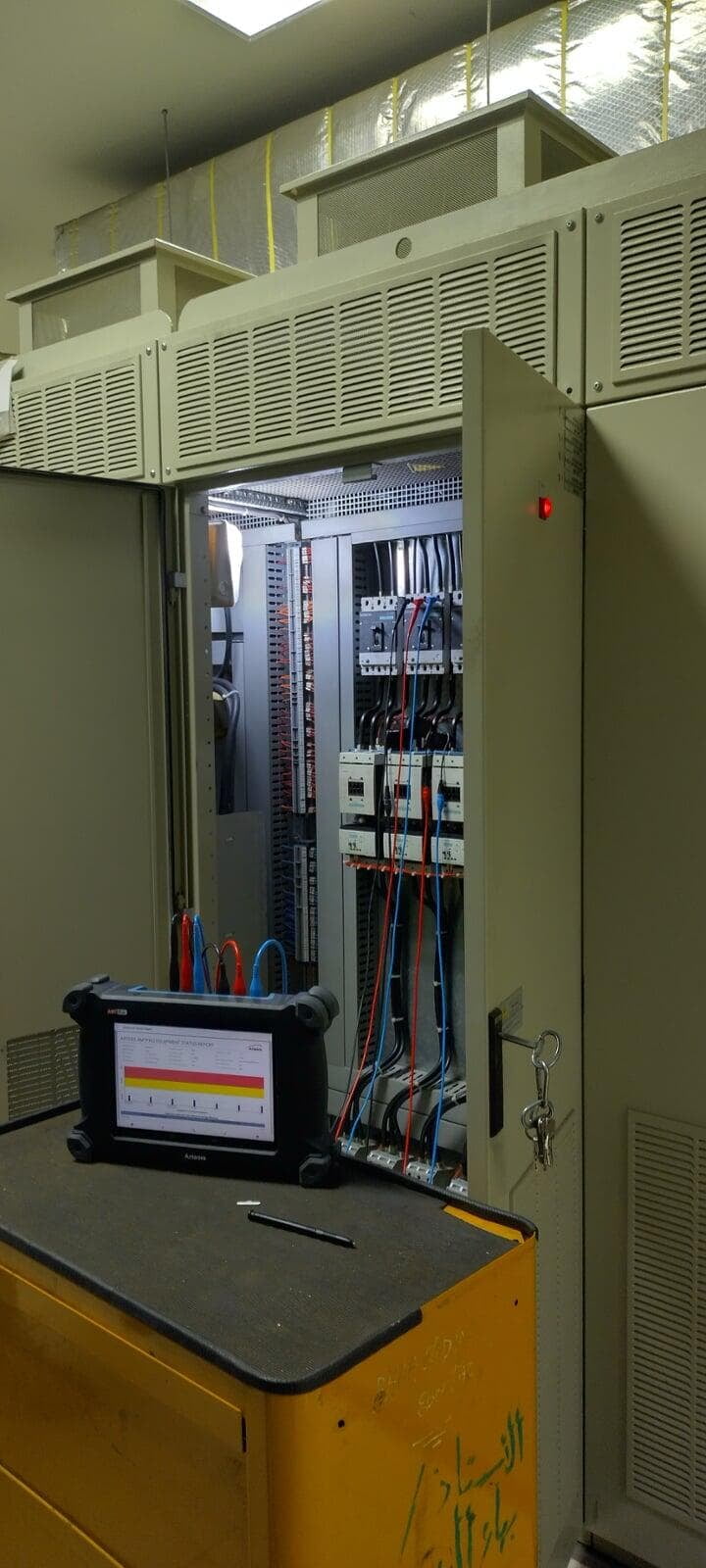

The Artesis AMT Pro is a portable motor driven equipment test system which automatically generates a condition assessment report indicating existing electrical mechanical and operational faults, time to failure information, recommended corrective actions, and effects of faults on energy efficiency.

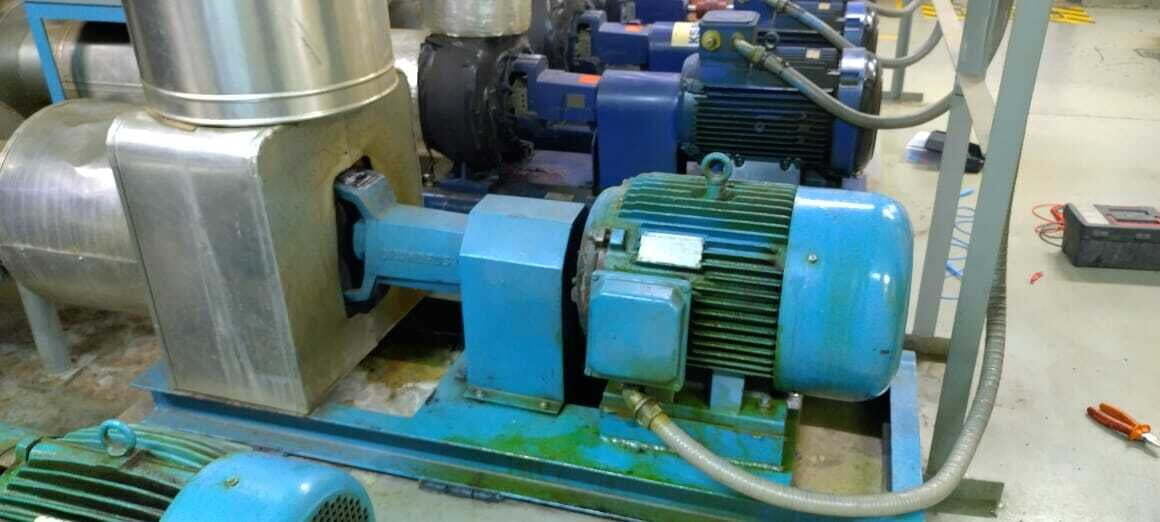

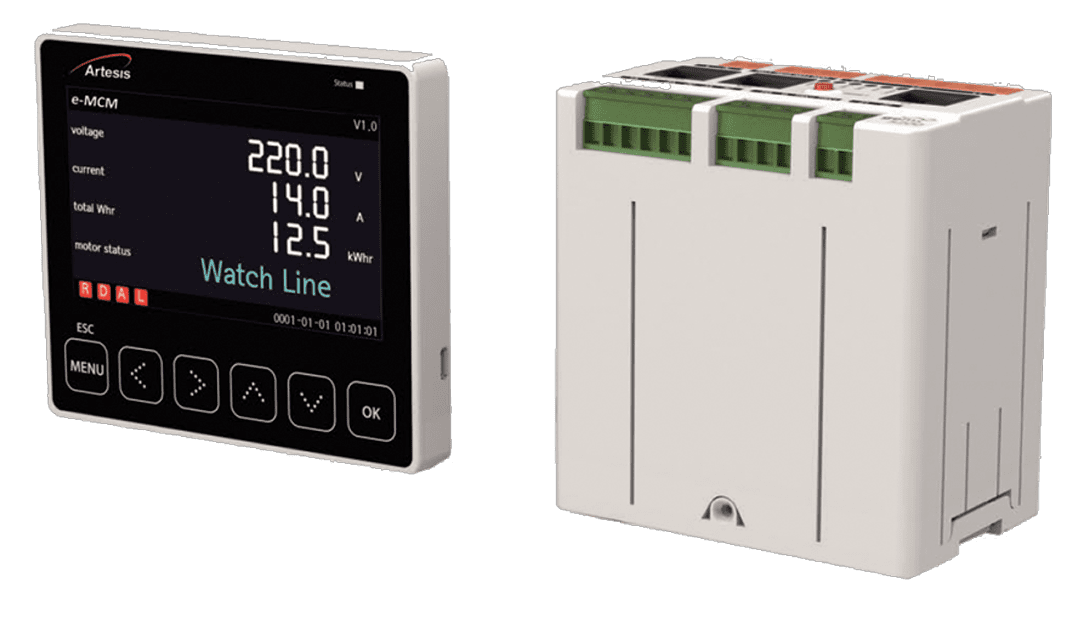

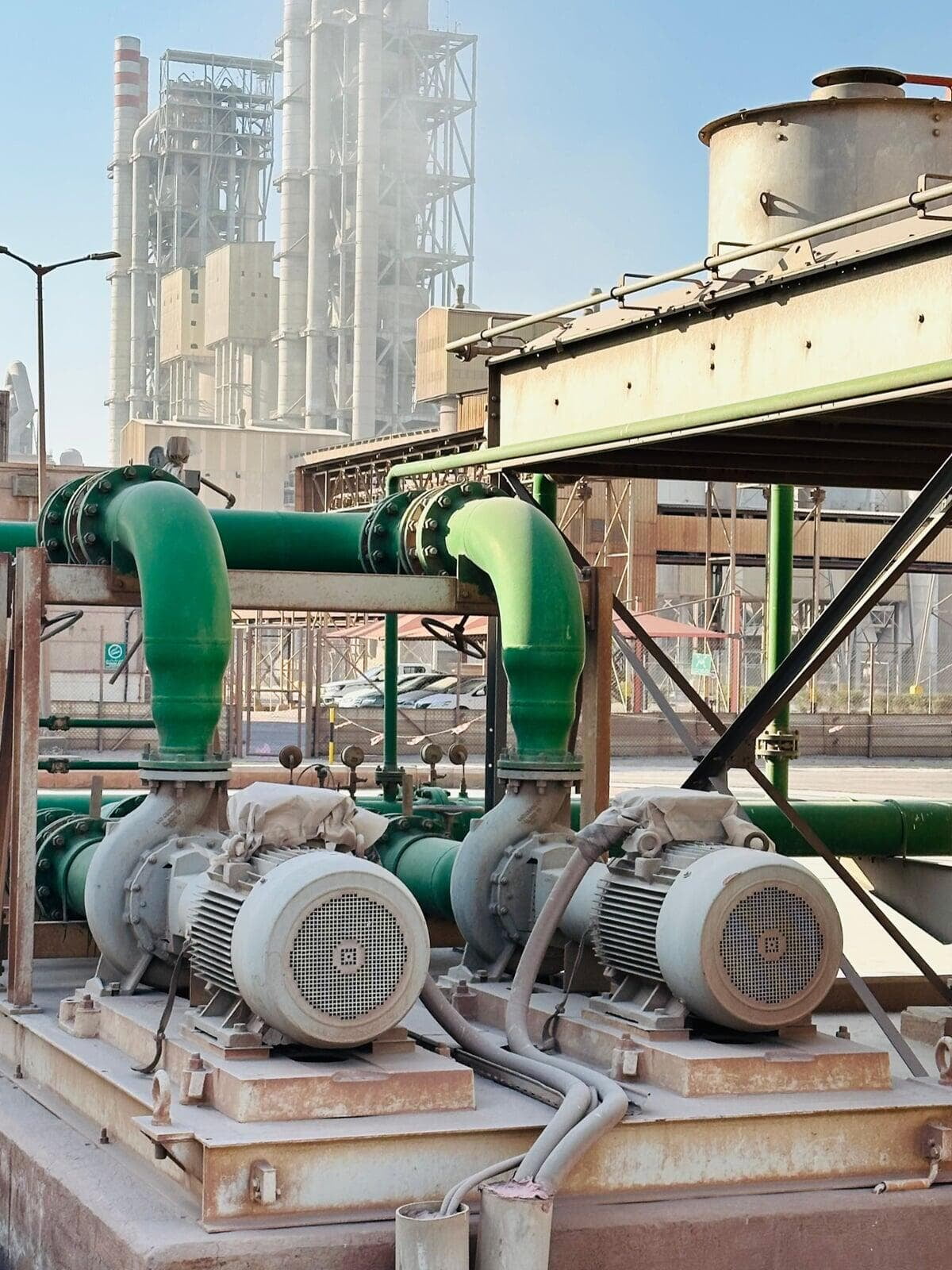

The Artesis e-MCM is online predictive maintenance & power meter tool intended for critical AC rotating equipment. e-MCM can detect electrical, mechanical as well as process faults of fixed, variable speed rotating equipments. Providing all benefits, without the complication & cost of traditional systems.

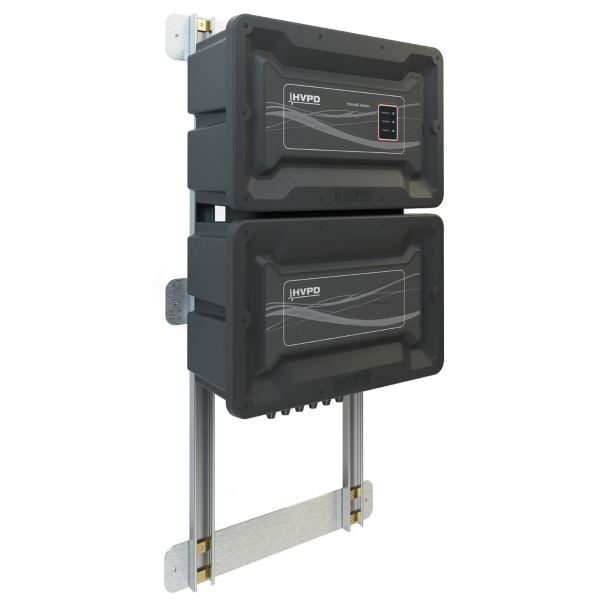

Designed for 4/7 continuous monitoring of complete MV/HV networks, our On-line high voltage partial discharge technology enables early detection of incipient insulation faults, allowing CBM team to avoid unplanned outages and achieve operational excellence in transformers, cables, switchgears and stators from 3.3kV.

Designed for detecting PD in all types of in-service plants. Easy set up, it detects early stages of insulation detoriation providing early alarm against MV/HV insulation faults. In addition to PD detction Spot Tester can be used for on-line PD cable mapping, within 1% of the circuits overall length Detection.

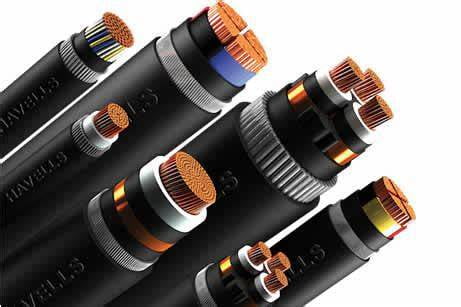

• Operation and Maintenance Routine and after repair On-line and Offline testing to detect insulation degradation in operating equipment.

• Test Capabilities

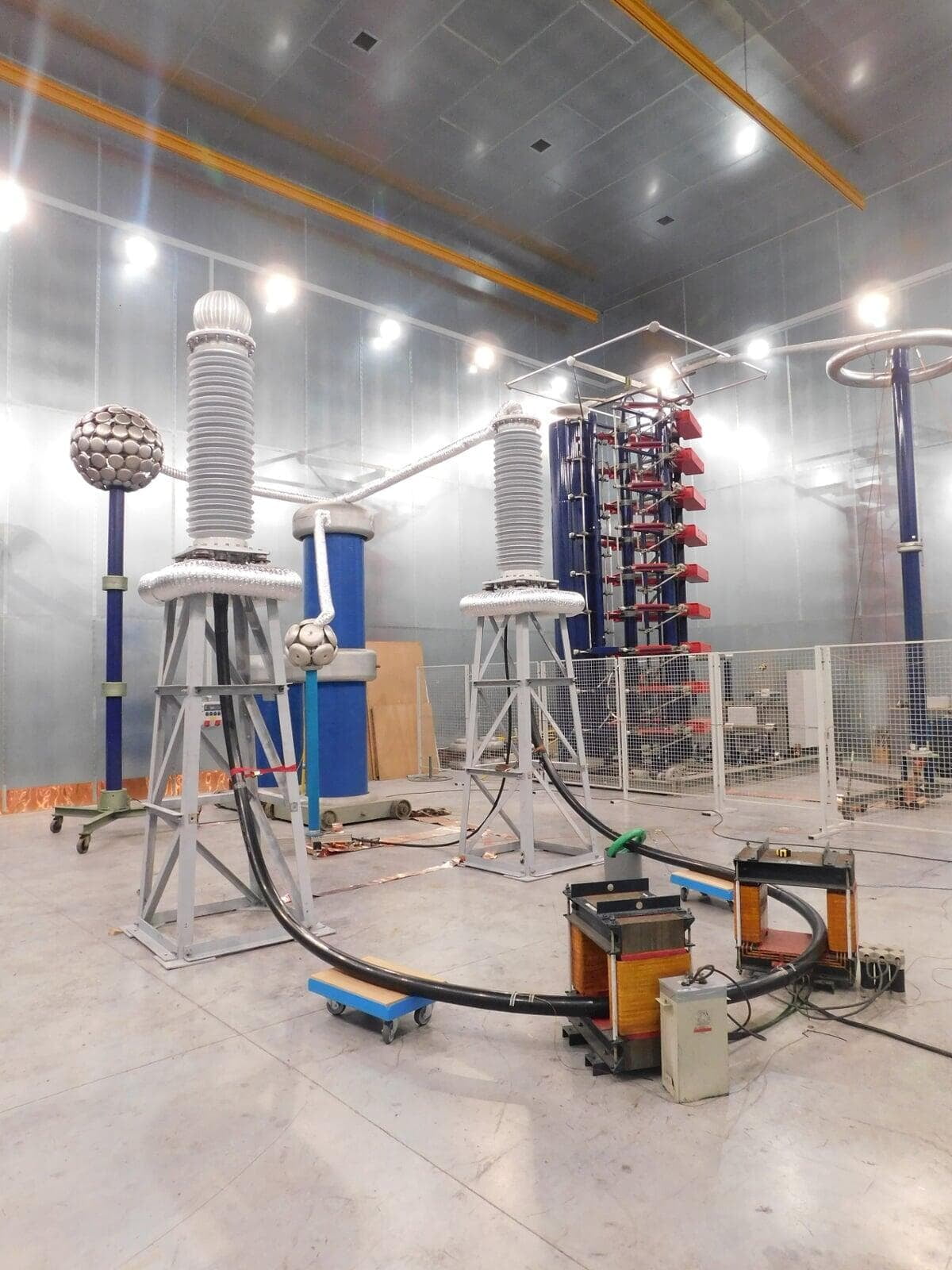

On-line PD testing and monitoring On-line and Offline PD mapping VLF (0.1 Hz sinusoidal) up to 64 kV (RMS) / 90 kV (peak) with PD and Tan Delta Resonant test (15 – 400 Hz) up to 15 kV with PD and Tan Delta DC HiPot up to 120 kV Insulation Resistance 10 kV Polarisation Index Time domain reflectometry

• Test Standards

IEEE 400.2-2013 IEEE Guide for Field Testing of Shielded Power Cable Systems Using Very Low Frequency (VLF)(less than 1 Hz) IEC 63026:2019 Submarine power cables with extruded insulation and their accessories for rated voltages from 6 kV (Um = 7,2 kV) up to 60 kV (Um = 72,5 kV) - Test methods and requirements

IEC TS 62478:2016 High voltage test techniques - Measurement of partial discharges by electromagnetic and acoustic method

• Test Capabilities

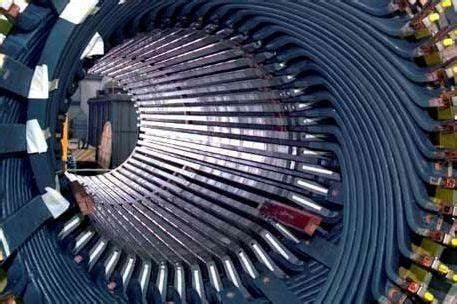

On-line PD testing and monitoring On-line PD testing and monitoring with pre-installed couplers: HFCT, Rogowski Coil, 80 pF coupling capacitors VLF (0.1 Hz sinusoidal) up to 42 kV (RMS) / 60 kV (peak) with PD and Tan Delta Resonant test (15 – 400 Hz) up to 15 kV with PD and Tan Delta/Power Factor DC HiPot up to 60 kV Insulation Resistance 10 kV DC Winding Resistance Pole Drop Test Polarisation Index

• Test Standards

IEC TS 60034-27-2:2012 Rotating electrical machines - Part 27-2: On-line partial discharge measurements on the stator winding insulation of rotating electrical machines

IEC 60034-27-1:2017 Rotating electrical machines - Part 27-1: Off-line partial discharge measurements on the winding insulation

IEC 60034-27-3:2015 Rotating electrical machines - Part 27-3: Dielectric dissipation factor measurement on stator winding insulation of rotating electrical machines

IEC TS 62478:2016 High voltage test techniques - Measurement of partial discharges by electromagnetic and acoustic method

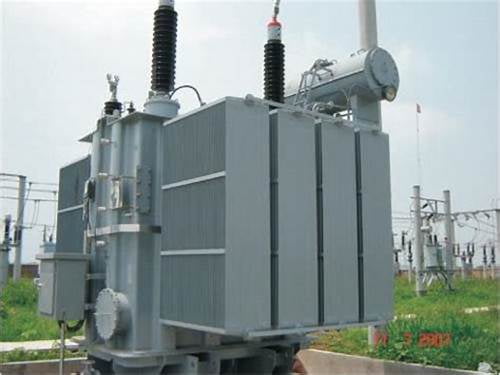

• Operation and Maintenance Routine and after repair On-line and Offline testing to detect insulation degradation in operating equipment.

• Test Capabilities

On-line PD testing and monitoring Offline PD testing On-line PD testing and monitoring with UHF drain valve sensor On-line PD testing and monitoring with pre-installed couplers: UHF and Bushing Tap Sensor

• Test Standards

IEC 60076-3:2013+AMD1:2018 Power transformers - Part 3: Insulation levels, dielectric tests and external clearances in air

IEC TS 62478:2016 High voltage test techniques - Measurement of partial discharges by electromagnetic and acoustic methods
